Inflatable Marine Ship Launching Balloon Airbags 1.2m Diameter For Tugboat

Name: Inflatable Marine Ship Launching Balloon Airbags 12m Diameter For Tugboat
Brand: XINCHENG
Price: 200 USD

Quality Inflatable Marine Ship Launching Balloon Airbags 1.2m Diameter For Tugboat wholesale

Brand Name : XINCHENG

Model Number : 1.2m*10m

Certification : CCS,LR,BV

Place of Origin : Qingdao

MOQ : 1piece

Price : $200-6000/piece

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 150PCS per month

Delivery Time : 15days

Packaging Details : deflated by tray

Size : Customized Size,Customer's Ruquirement,Depend on your need,Dia1.5*9M

Usage : Ship launching,landing and slvage,Protect Boat,moving/lifting/landing /launching

Product name : Ship launching marine air bag,marine rubber airbag,ship launching airbag

Standard : CB/T-3837,ISO14409,CB/T-3795,ISO Standard,ISO 14409

Length : 5.0m-20m,from 1000mm to 24000mm

Contact Now

Inflatable Marine Salvage Air Lift Bags1.2m Diameter For Tugboat

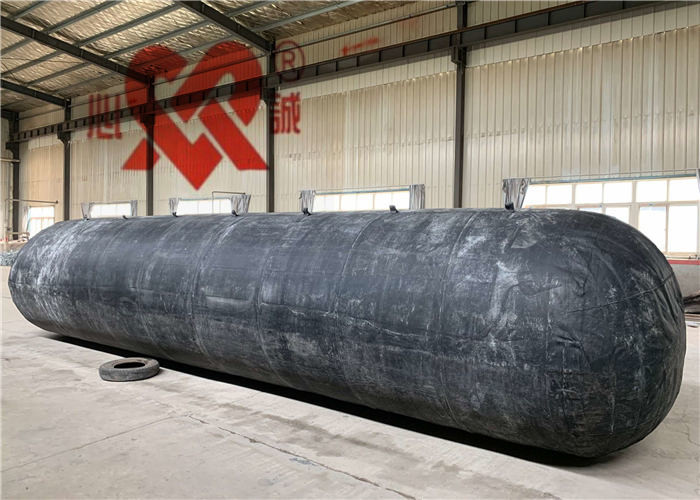

Ship Launching / Landing /salvage Airbags, basic body are consisted of our rubber layers, synthetic-cord-reinforced rubber layers, are kind of a cylindrical airbags with hemispherical heads at the both ends. All of these are vulcanized together, and then compress air inside to enable it to roll.

1. Outer Rubber: The outer rubber layer protects the cord layers from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black.

2. Synthetic-net-cord Layer for Reinforcement: The reinforcement cord layers, which are made of Synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.

3. End Fittings: End fittings include air tightness swivel and airbags safety air inlet.

Layer: 4-10 layers

Dia	Effective Length	Layers with cord	Working Pressure	Bearing Capacity
Dia	Effective Length	Layers with cord	Working Pressure	Lifting Height	Tons/Airbag
1.2m	10m	6	0.17mPa	0.9m	78.51 tons
1.5m	12m	8	0.18mPa	1.2m	100.50 tons
1.8m	15m	8	0.15mPa	1.5m	104.69 tons
2.0m	18m	10	0.17mPa	1.5m	235.54 tons
2.5m	18m	12	0.16mPa	2.0m	226.12 tons

Application of air bag
1. Shipwreck salvage
2. Floating bridge and dock construction
3. Rescue and remove of wrecked ship
4. Can be used as pontoons for supporting docks and other floating structure
5. Be used for hoisting and transporting heavy goods.

FAQ:

1."I have ships but don't know how to choose the size of Marine Airbag."

Answer: Don't worry .We have more than 10 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.

2."I want to try your Marine Airbag, but I never use it and don't know how to use, can you help me?"

Answer: Don't worry. We will send instruction book together with Marine Airbag.

3."What's your MOQ?"

Answer: Our MOQ is 1PC.

4."How about the lifespan of your Marine Airbag?"

Answer: Designed lifespan of our Marine Airbag is 6 to 10 years

5."What's your warranty period ?"

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.

6."What kind of certificate can you provide ?"

Answer: CCS, BV etc. certificate is available.
